• Joint Restraint Kit | Midland MFG Co.

4715

$277.04

Description

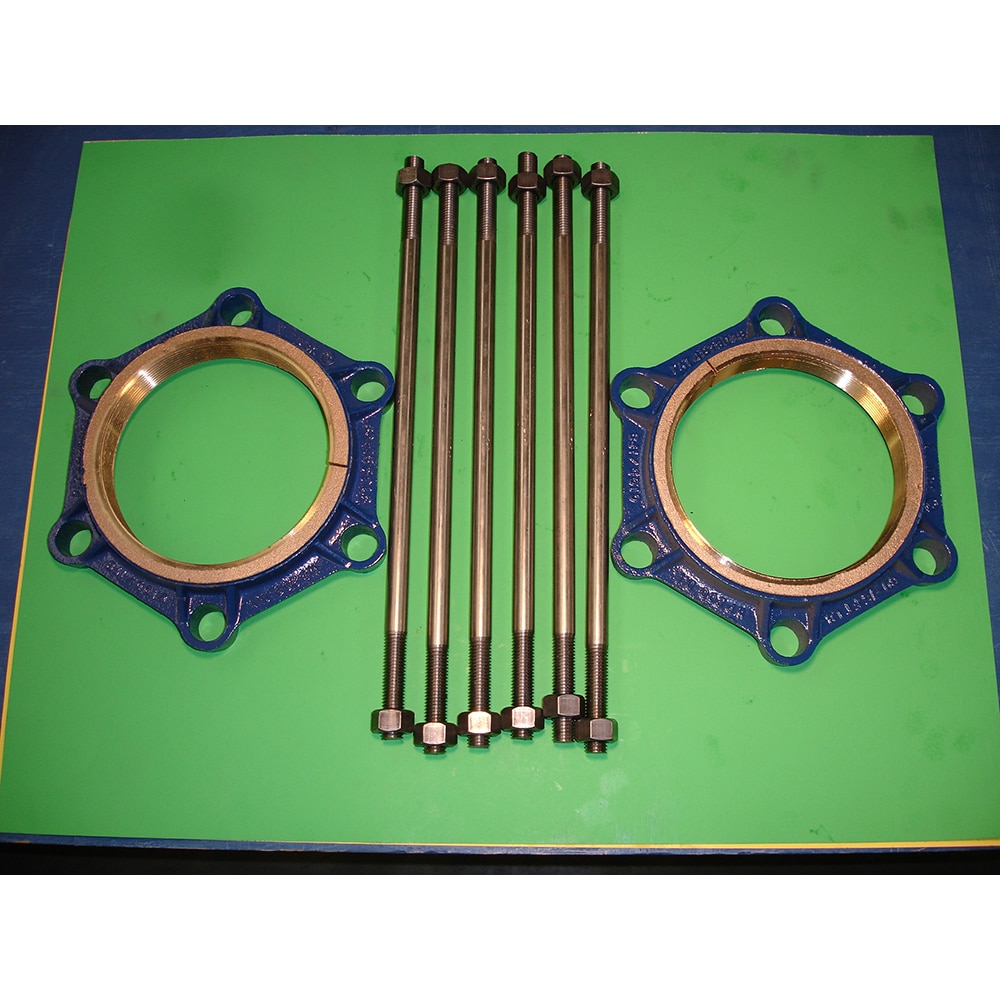

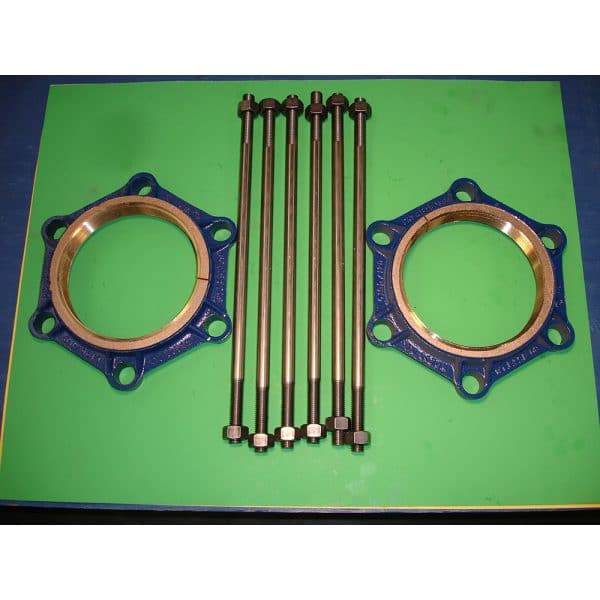

For PVC and PVCO pressure fittings. Each MIDCO Coupling Restraint Kit includes:

  • 2 MIDCO RG units: two 8″ IPS brass grip rings; two 8″ epoxy powder coated iron glands
  • 6 3/4″ x 18″ threaded and zinc plated cold rolled steel rods
  • 12 zinc plated heavy hex nuts

  • MATL SPECS FOR MIDCO COMPONENTS:
    Glands – ASTM A 536 Grade 65-45-12 Ductile Iron and Epoxy Powder Coated to 4 mil thickness. Series 3000 (Style 30) 360 degree Grip Ring – C87850 Bronze ECOBRASS ASTM B 30, B 584, B 806; Rods and Nuts – Zinc Plated Cold Rolled Steel ASTM B633 Type 3.


Additional information

Product Name

8" IPS Coupling Restraint Kit w/ 18" zinc plated cold rolled steel rods

Style

Coupling Restraint

Diameter

8"

Weight (lbs)

33
