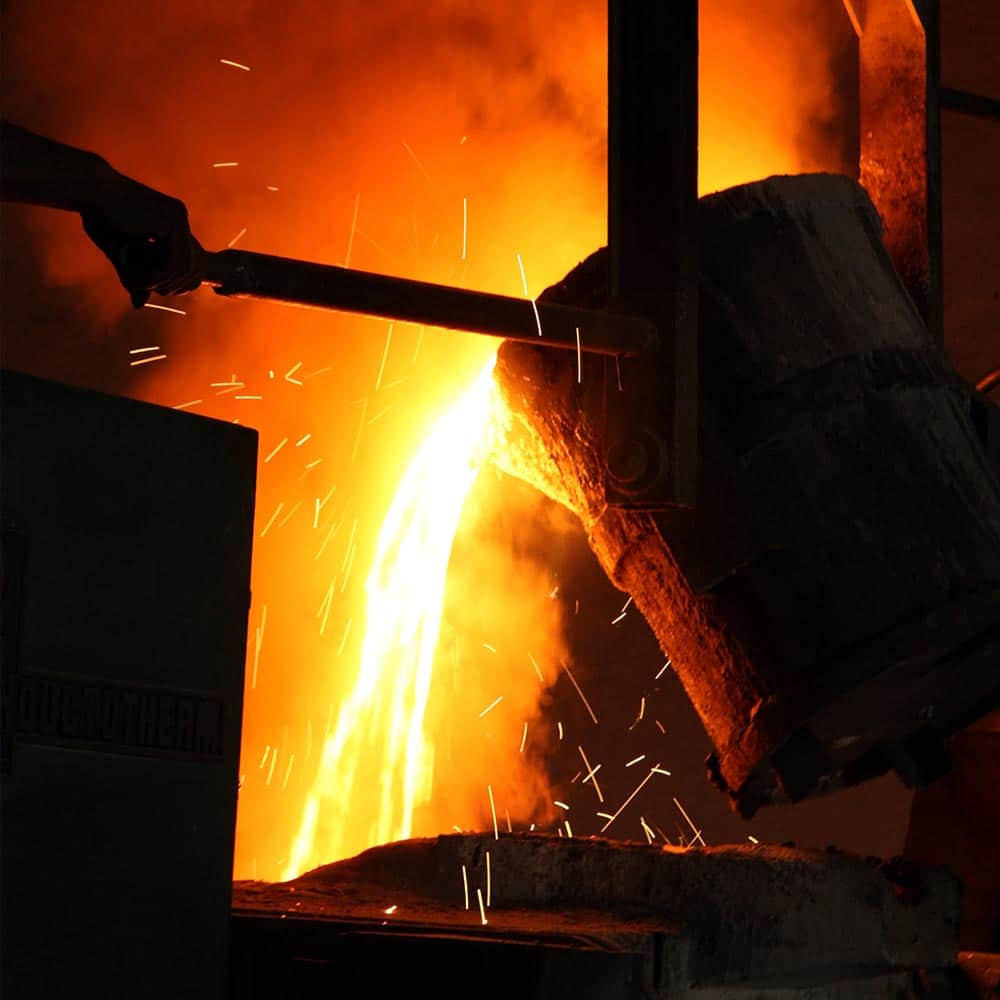

Midland Manufacturing Company operates a state of the art brass, bronze and aluminum foundry. Our facility utilizes the latest technology, industry protocols and quality procedures in all aspects of production from core making, molding, pouring, and shakeout to provide you high quality, competitively priced sand castings. Processes include automatic green sand molding line, no-bake molding, shell and cold-box core methods.


Our recently installed, state of the art Sinto automatic molding and handling equipment provides highly efficient and competitively priced, high quality green sand castings that meet or exceed industry demands. Our production volume is up to 70,000 lbs. per day per shift. All of our castings are corrosion, wear, and acid resistant and we feature an environmentally friendly, lead-free compliant Eco Brass (C87850) and C903.  We are compliant with ISO, ASME, SAE, ASTM, Mil-Spec, and other internationally recognized Standards


Our No-Bake molding system features a proprietary process that enhances the setup and production of these type castings generating a superior quality casting ideal for larger castings or castings requiring a specialized surface finish.  This system is particularly effective in casting impellers, vanes, certain machine tools, bushing stock, gear blanks as well as generating MARCOZA architectural castings – signage, plaques, architectural markers, ornamental restorations and address plates.

Custom Castings | Midland MFG Co.
Contact Us Today

NO-LEAD CERTIFICATION – Eco Brass C87850 & C903

We offer environmentally friendly Eco Brass C87850 and C903 for no-lead castings which we have successfully used for the past several years in our MIDCO Municipal Pipe Joint Restraints, Water Meter Flanges, and Water Well Pump Cylinder product lines.

All components made from C87850 and C903 meet requirements as specified by the state of California, NSF/ANSI Standard 61 Annex G, and NSF/ANSI Standard 372 and the National Lead Free Law, the Safe Drinking Water Act, and Public Law 111-380, effective 1/1/2014.

The composition of Eco Brass C87850 is certified to be Copper – 76%, Zinc – 20%, Silicon – 3%, Phosphorus – 0.12%, Lead – .09% (max).

Casting Flask Size – Automatic Molding

16” x 20” x 18”

No-Bake Molding

48” x 48” x 48”

Plaque Size

Up to 48” as required

Casting & Plaque Weight

4_oz – 400_lbs

Production Volume

70,000 lbs. per day per shift

Value Added Services

Midland’s product analysis, design and engineering services include 3D modeling as well as turn-key tool design/build capability. Below are some of the ‘value added’ services available to help you meet your finished product requirements and schedules.

  • Assembly
  • Brinell Hardness Testing
  • Engineering
  • Finishing
  • Inspection
  • Layout
  • Machining
  • Metal Certification
  • NDT (X-ray, Penetrant)
  • Powder Coating
  • Spectrographic Analysis
  • Steel Shot Blasting

KANBAN programs can be set up to minimize lead time and allow you to receive your casting orders with quick turnaround (zero days lead time).

Our IPREX Vacuum Pressure Impregnation process is also available, whenever castings of any metal must withstand hydrostatic, hydraulic, or pneumatic pressures.

Contact Us Today


Typically cast alloys are listed below. Additional cast alloys available upon request.

Nickel Aluminum Bronze

  • C958

Bearing Alloys

  • C836, C932

Aluminum Bronze

  • C952, C953, C954, C955, C958

Manganese Bronze

  • C862, C863, C865

Silicon Bronze

  • C873, C875, C876


  • C87850 Lead-Free Compliant

Tin Bronze

  • C923, C903 Lead-Free Compliant


  • A319, A320, A355, A356
