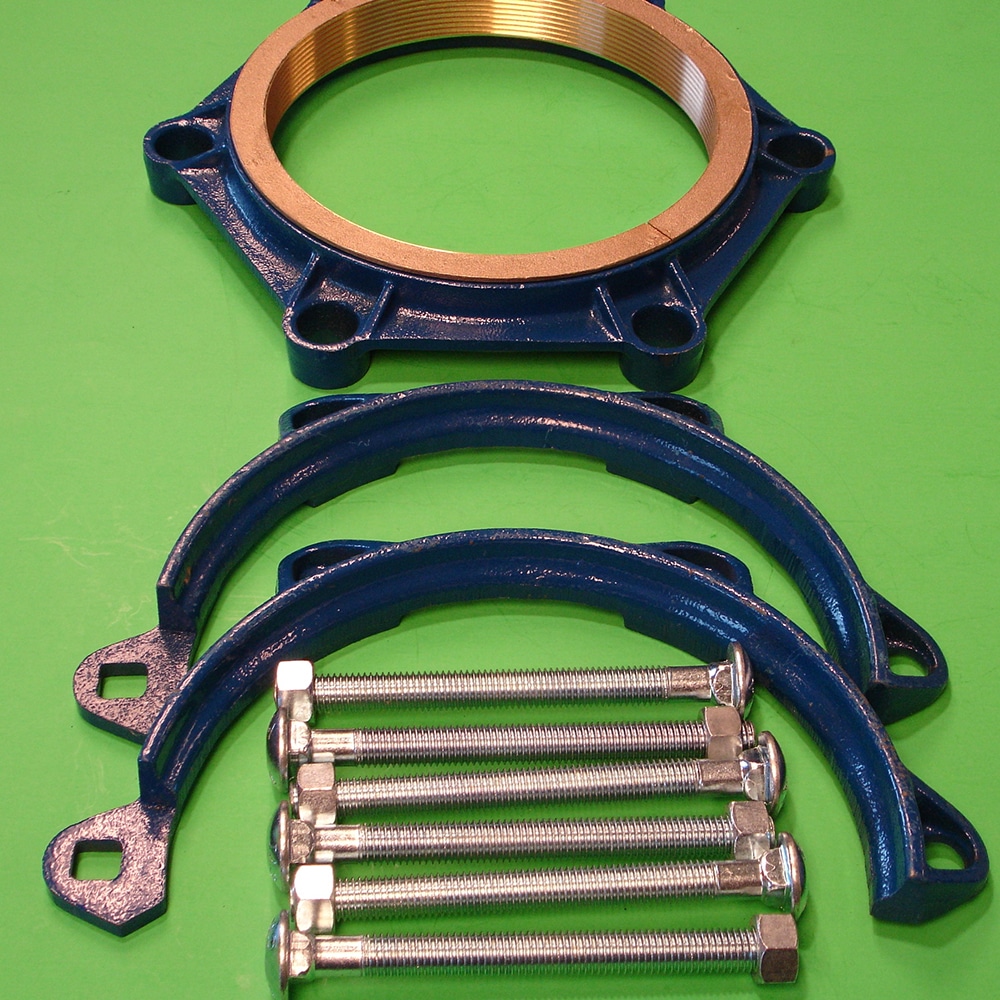

Each Split Ring Anchor Kits  includes:

  • One brass grip ring
  • One epoxy powder coated iron gland
  • One 2-piece epoxy powder coated anchor ring
  • Corrosion resistant carriage bolts (quantities vary by pipe size)

Matl specs for MIDCO components:

Glands – ASTM A 536 Grade 65-45-12 Ductile Iron and Epoxy Powder Coated to 4 mil thickness. Series 3000 (Style 30) 360 degree Grip Ring – C87850 Bronze ECOBRASS ASTM B 30, B 584, B 806; T-Bolts and Nuts – ASTM A 242.

All MIDCO Municipal Products are fully compliant with the California Lead Plumbing Laws, NSF/ANSI 61 Annex G, ANSI Standard 372, the National Lead Free Law, The Safe Drinking Water Act, and Public Law 111-380.

Click ‘model number’ below for individual product prices and information

Showing all 3 results

  • Product
  • Product Name
  • Style
  • Diameter
  • Weight (lbs)

4613

$146.58
  • 4613

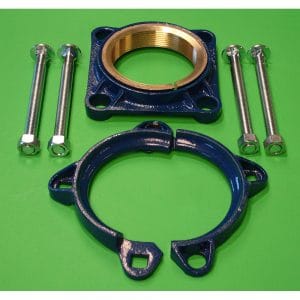

  • Product Name 4" Split Ring Anchor Kits
  • Style Anchor Ring
  • Diameter 4"
  • Weight (lbs) 11

4614

$196.82
  • 4614

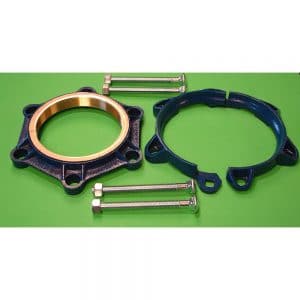

  • Product Name 6" Split Ring Anchor Kits
  • Style Anchor Ring
  • Diameter 6"
  • Weight (lbs) 16.5

4615

$239.68
  • 4615
  • Product Name 8" Split Ring Anchor Kits
  • Style Anchor Ring
  • Diameter 8"
  • Weight (lbs) 21.5
