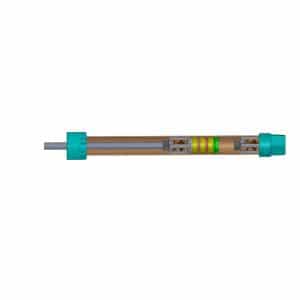

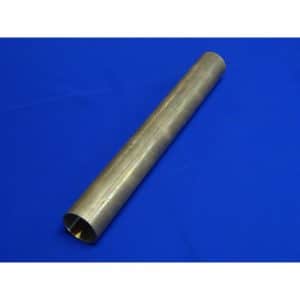

All brass Deep Well #449 & #852 open top water well cylinders are made with 11 Gauge (.125 wall for #449) or 10 Gauge (Heavy Wall .187 wall for #852) seamless brass tubing, respectively.

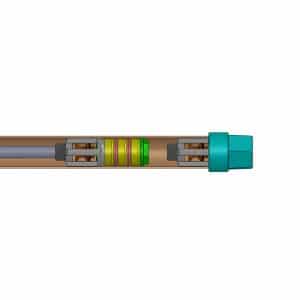

All  Deep Well #449 & #852 water well cylinders are available with either solid brass Ball valves or Spool valves, please specify.

All Deep Well Cylinders are available with 3 cup leathers or 4 cup leathers on the plunger valve.

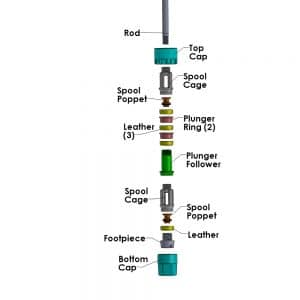

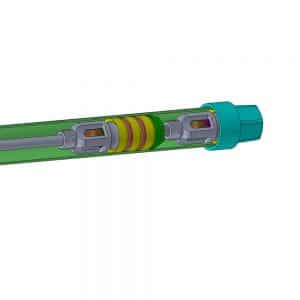

The plungers are bottom tapped so they can screw onto the check valve for easy removal.

Caps for #449 & #852 Deep Well Cylinders are not interchangeable.

Longer strokes available upon request.

In Stock Sizes:

  • 1 3/8″
  • 1 7/8″
  • 2 1/4″
  • 2 3/4″
  • 3 3/4″

All midland well cylinders and parts are sold through distributors only. Please click on the ‘Midland distributors’ map to the left to find a distributor near you.
