Standard Flanges and Flange Kits:

Water Meter Flanges – Individual – 1 1/2″, 2″, 2″ slotted

Water Meter Single Flange Kits – 1 1/2″ and 2″; Each Flange Kit includes:

  • one water meter flange (1 1/2″ or 2″ or 2″ slotted)
  • one gasket:
    • drop in neoprene or
    • full face neoprene or
    • drop in textured red rubber or
    • full face textured red rubber
  • two zinc plated nuts and bolts

Water Meter Double Flange Kits – 1 1/2″ and 2″; Each Flange Kit includes:

  • two water meter flanges (1 1/2″ or 2″ or 2″ slotted)
  • two gaskets:
    • drop in neoprene or
    • full face neoprene or
    • drop in textured red rubber or
    • full face textured red rubber
  • four zinc plated nuts and bolts

Oval meter flanges faced and drilled per AWWA C700. Bronze casting C87850 ECOBRASS (.09% lead max). Round flanges conforming to ANSI B16.1. Gaskets ANSI/AWWA C111/A21.11;Bolts ANSI B18.2.1; Nuts SAE J995 Grade 5 with dimensional tolerances ANSI B182.2.2; plating ASTM F1491.

All parts and components manufactured 100% in USA.

All MIDCO Municipal Products are fully compliant with the California Lead Plumbing Laws, NSF/ANSI 61 Annex G, ANSI Standard 372, the National Lead Free Law, The Safe Drinking Water Act, and Public Law 111-380.

Click ‘model number’ below for individual product prices and information

Showing 1–16 of 37 results

  • Product
  • Product Name
  • Style
  • Diameter
  • Weight (lbs)

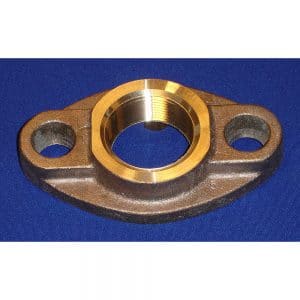

2.5 Water Meter Flange | Midland MFG Co.

1911

$44.14
  • 1911
  • Product Name 1-1/2" Bronze Water Meter Flange
  • Style Single Flange
  • Diameter 1-1/2"
  • Weight (lbs) 2.06

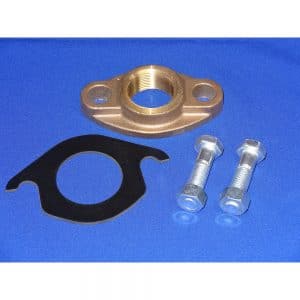

Drop In Neoprene HD Water Meter Single Flange Kit | Midland MFG Co.

19123

$51.70
  • 19123
  • Product Name 1-1/2" Drop in Neoprene Single WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) 3.4

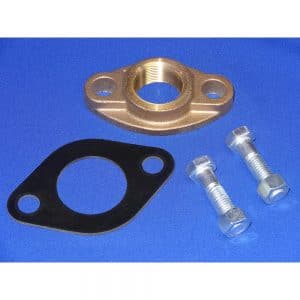

Full Face Neoprene HD Water Meter Single Flange Kit | Midland MFG Co.

19124

$51.70
  • 19124
  • Product Name 1 1/2" Full Face Neoprene Single WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) 3.4

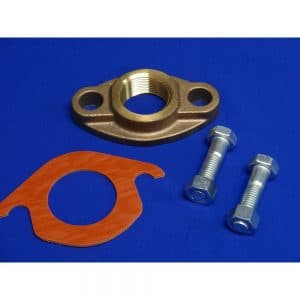

Drop In HD Water Meter Single Flange Kit | Midland MFG Co.

19125

$51.70
  • 19125
  • Product Name 1 1/2" Drop In Red Rubber Single WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) 3.4

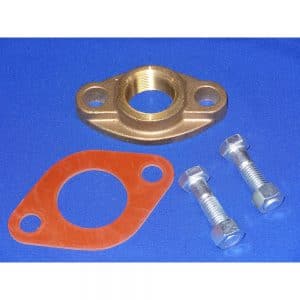

Full Face HD Water Meter Single Flange Kit | Midland MFG Co.

19126

$51.70
  • 19126
  • Product Name 1 1/2" Full Face Red Rubber Single WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) 3.4
1.5" Drop In Neoprene Water Meter Flange Kit | Midland MFG Co.

1915

$95.76
  • 1915
  • Product Name 1-1/2" Drop in Neoprene Double WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) -

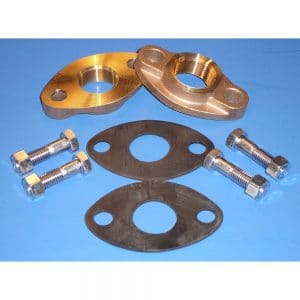

1.5" Full Face Neoprene Water Meter Flange Kit | Midland MFG Co.

1916

$95.76
  • 1916
  • Product Name 1-1/2" Full Face Neoprene Double WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) -

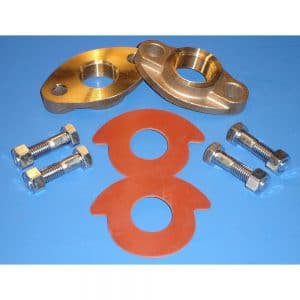

1.5" Drop In Red Rubber Water Meter Single Flange Kit | Midland MFG Co.

1917

$95.76
  • 1917
  • Product Name 1-1/2" Drop in Red Rubber Double WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) 5.5

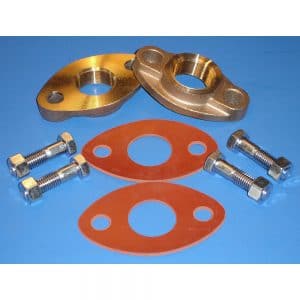

1.5" Full Face Red Rubber Water Meter Single Flange Kit | Midland MFG Co.

1918

$95.76
  • 1918
  • Product Name 1-1/2" Full Face Red Rubber Double WMF Kit
  • Style Kit
  • Diameter 1-1/2"
  • Weight (lbs) 5.5

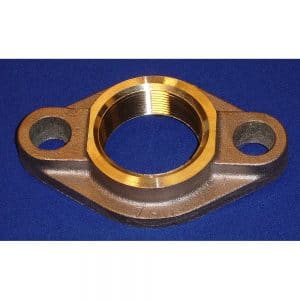

2" Water Meter Flange | Midland MFG Co.

1921

$47.06
  • 1921
  • Product Name 2" Bronze Water Meter Flange
  • Style Single Flange
  • Diameter 2"
  • Weight (lbs) 2.14
Drop In Neoprene HD Water Meter Single Flange Kit | Midland MFG Co.

19223

$52.60
  • 19223
  • Product Name 2" Drop in Neoprene Single WMF Kit
  • Style Kit
  • Diameter 2"
  • Weight (lbs) 3.6
Full Face Neoprene HD Water Meter Single Flange Kit | Midland MFG Co.

19224

$52.60
  • 19224
  • Product Name 2" Full Face Neoprene Single WMF Kit
  • Style Kit
  • Diameter 2"
  • Weight (lbs) 3.6
Drop In HD Water Meter Single Flange Kit | Midland MFG Co.

19225

$52.60
  • 19225
  • Product Name 2" Drop in Red Rubber Single WMF Kit
  • Style Kit
  • Diameter 2"
  • Weight (lbs) 3.6
Full Face HD Water Meter Single Flange Kit | Midland MFG Co.

19226

$52.60
  • 19226
  • Product Name 2" Full Face Red Rubber Single WMF Kit
  • Style Kit
  • Diameter 2"
  • Weight (lbs) 3.6

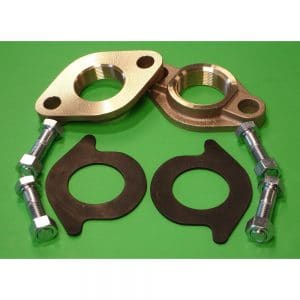

2 Drop In Neoprene Water Meter Single Flange Kit | Midland MFG Co.

1925

$98.30
  • 1925
  • Product Name 2" Drop in Neoprene Double WMF Kit
  • Style Kit
  • Diameter 2"
  • Weight (lbs) 5.75
2 Full Face Neoprene Water Meter Single Flange Kit | Midland MFG Co.

1926

$98.30
  • 1926
  • Product Name 2" Full Face Neoprene Double WMF Kit
  • Style Kit
  • Diameter 2"
  • Weight (lbs) 5.75
